9. Zanoni bowlback mandolin (316)  @ £140
Larger photos are available on request.

Old named Italian bowl-back

    This is an old, Italian bowl-back mandolin from the early 20th cetury. It is in good condition after restoration. There is a label which says…

Domenico Zanoni

Fabbricanti Instrumenti Armonica

Napoli

   This instrument is now fully restored. The top is sound but with no repairs.  It has a 23-piece rosewood bowl back with 1 seam repair. It has it’s the original fingerboard in ebony, set on a shim. The tuners and tail are originals.  The rosewood bridge is new. It retains its original French polished finish, except for the top which has been refinished with Tru-oil for protection. It has been restrung with ultra-light GHS bronze wound classical strings, and is now playing well with a clear ringing sound with good volume. It has an easy action.

    Other than cleaning, I have repaired as follows… 1) refitted the fingerboard on a shim; 2) levelled the original brass frets;  3) repaired an open seam in the back;  4)fitted a new rosewood bridge and refitted the nut; 5) repaired damage to the scratchplate; 6) repair slight damage to neck veneer; 7)lightly finished the top with Tru-oil; and 8) renewed anti-vibration felting.



Mandolin Specifications (In Millimetres)

Overall Length of Mandolin

620mm

Width of  mandolin at widest point

195mm

Approx. Depth of mandolin

150mm at bridge.

Finish

Original French polished finish, except for a coat of Tru-oil to protect the top.

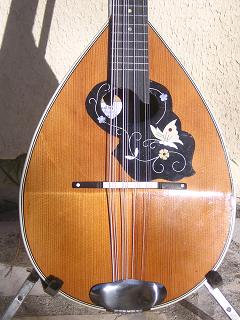

Belly wood

Good quality, book-matched, spruce top with no repairs, but a couple of small dinks. Top sealed with a coat of Tru-oil.

Scratch plate

Celluloid, MOP and abalone butterfly, now repaired.

Sound hole

Oval hole, approx. 65 x 45mm. Lavishly inlaid edging.

Back and sides

23-piece, rosewood bowl-back, clasp, and sides. Box stringing.  One seam repairs.

Neck and Head

2-piece, ebony-veneered, neck and head in good condition.  Small repair to neck veneer. A couple of small bits of veneer missing from rear of head.

Fingerboard

Original in ebony with 17 relevelled brass frets, now set on a shim . Originbal bone nut refitted. MOP position markers at 3, 5, 7, 10 and 12.

Machine heads

Original steel and brass tuners with original bone/ivory buttons.  All working.

Tailpiece

Original in brass, with brass string posts.

Bridge/tensioner

New rosewood and brass bridge.

Scale Length Bridge to nut

Scale of 330mm

G string height at bridge

6.5mm

E string height at bridge

6mm

12th fret to bottom of G string (Action)

2.5mm

12th fret to bottom of E string (Action)

1.75mm

Width of fretboard at nut

27mm

Width of fretboard at widest point

40mm

Sleeve guard

Sleeve guards are available if required
