8. Old fado style flatback (281)  @  £200

Larger photos are available on request.

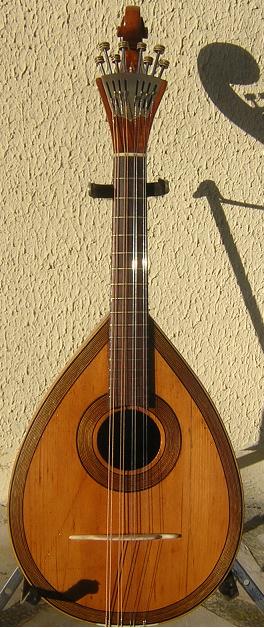

Old Portuguese flatback

    A typical Portuguese, fado-style, flat-back mandolin, with a long scale length, heavily domed fingerboard and Preston tuners. It is in good condition after restoration. There are in fact two labels…. The top label says….

Custodio Cardoso Pereira & C.a

Almada, Porto & Lisboa.

The second, initially covered by the above, and presumably the original maker, says…

Manoel Rodriguese de Jesus

Ex-encarregado

Da casa Manoel Pereira, successor M. C. Teixeira

Rua Das Barracas No. 83

Lisboa No. 520

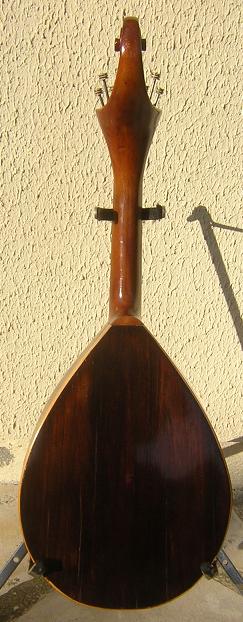

   This instrument is fully playable. The top is sound with NO repairs, though I have filled a deep gouge.  It has a two-piece rosewood back with several repairs. It has its original domed rosewood fingerboard, with original, re-levelled frets. The tuners, bridge and tail are originals.  It has been re-finished throughout with Tru-oil, a light, modern, hard, oil-varnish. It has been restrung with light GHS bronze wound classical strings, and is now playing well with a well-balanced, bright, ringing tone. It has an easy action.

    Other than cleaning, I have repaired as follows… 1) filled a gouge in the top with a spruce splint; 2) repaired several shrinkage splits in the back; 3) two small edging repairs; 4) repaired the tuners with 2 new tuner barrels; relevelled the frets; 5) refinished throughout with Tru-oil varnish; and 6) refitted the bridge and nut.

   As it is takes double-loop strings, it will come with a spare set of strings with a second loop already wound. There after I am happy to sell sets as the buyer needs them

   This instrument is now sound and plays very well. The Mandolin will be ‘tuned down’ and very carefully packed for posting. The box may afterwards be converted into a serviceable case.



Mandolin Specifications (In Millimetres)

Overall Length of Mandolin

620mm

Width of  mandolin at widest point

220mm

Approx. Depth of mandolin

90mm at bridge.

Finish

Refinished throughoutwith Tru-oil varnish.

Belly wood

Fair quality, book-matched, spruce top , close-grained in the centre with NO repairs.  One pronounced gouge filled. All purfling and edging in good repair.

Scratch plate

N/A

Sound hole

Round apprx diam. 58mm

Back and sides

Rosewood with box?? Edging. Several shrinkage repairs to the back, and two small edging repaires.

Neck and Head

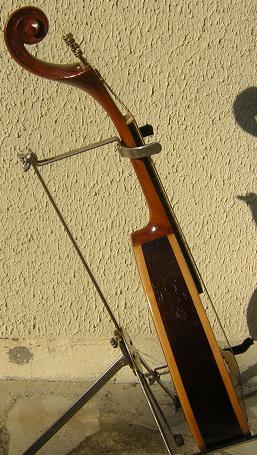

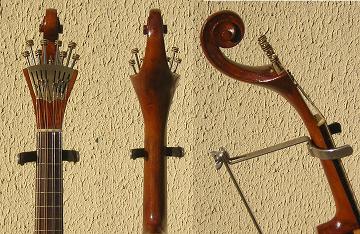

Single-piece, scrolled, head and neck in good condition.

Fingerboard

Original in rosewood with original re-levelled brass bar frets.  Original bone nut.

Machine heads

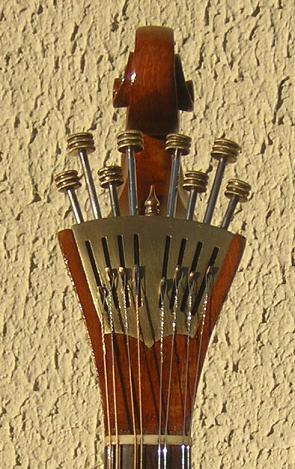

Original steel and brass Preston tuners with original buttons, except for two new barrels. All working.

Tailpiece

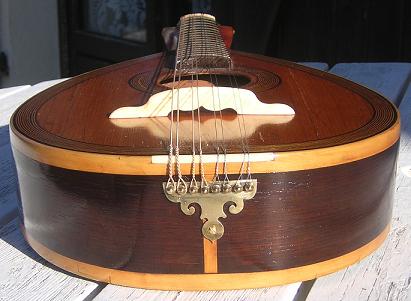

Original in brass, with 8 string posts, and a bone lip on the edging for the strings.

Bridge/tensioner

Original bone bridge refitted.

Scale Length Bridge to nut

Scale of 350mm

G string height at bridge

14mm

E string height at bridge

14mm

12th fret to bottom of G string (Action)

1.5mm

12th fret to bottom of E string (Action)

1.5mm

Width of fretboard at nut

 30mm

Width of fretboard at widest point

38mm

Sleeve guard

I have some available for purchase.

Case

I have some gig-bags available for purchase.
