6. Garnotti bowlback mandolin (264) @ £120

Larger photos are available on request.

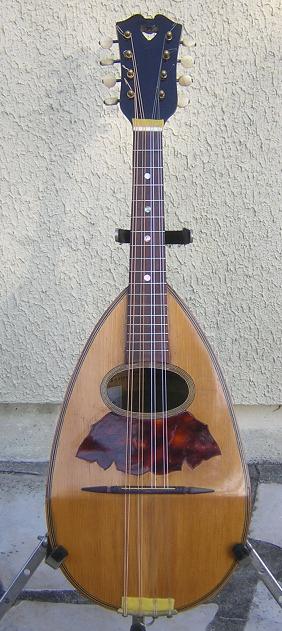

Old Italian bowl-back

    This is an old, Italian bowl-back mandolin. It is in good condition after restoration. There is a label which says…

Giuseppe Seraphino Garnotti & Co.

Fabrica d’Instrumenti

Fatto Napoli

   The top is sound and has no repairs.  It has a 15-piece rosewood bowl back with 1 repair. It has the original rosewood fingerboard and original ‘German silver’ bar frets. The tuners and tail are originals but the rosewood bridge is new. It retains its original ‘French polished’ finish throughout. It has been restrung with ultra-light GHS bronze wound classical strings, and is now playing well with a strong, ringing tone, and good volume and sustain, especially on the lower strings. It has an easy action. The fingerboard and top have been treated with ‘Lem-Oil’ to inhibit the adherence of grease.

    Other than cleaning, I have repaired as follows… 1) repaired 1 seam separations in the back; 2) re-levelled the original frets; 3) fitted new scratch-plate; 4) re-installed the fingerboard on a shim; 5) made and fitted a new bone nut, and bridge in ebony; and 4) replaced anti-vibration felting.





Mandolin Specifications (In Millimetres)

Overall Length of Mandolin

295mm

Width of  mandolin at widest point

190mm

Approx. Depth of mandolin

150mm at bridge.

Finish

Original French polished shellac finish throughout. Slight scratching here and there.

Belly wood

A good quality, close-grained, book-matched, spruce top with NO repairs.  Edging in good repair.

Scratch plate

New acetate scratch.

Sound hole

Oval hole, approx. 75 x 40mm. Edged with BW x 5 purfling.

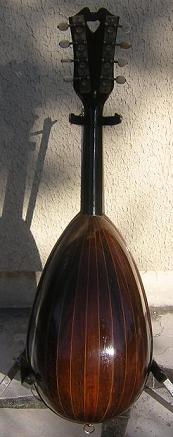

Back and sides

15-piece, rosewood bowl-back, sides and clasp. Box stringing with 1 invisible seam repair.

Neck and Head

2-piece, neck and head in good condition.

Fingerboard

 Original in rosewood set on a shim. Original re-levelled ‘German silver’ bar frets. MOP position markers at frets 3, 5, 7, and 10. New bone nut fitted.

Machine heads

Original, steel and brass tuners with original bone buttons.  All working smoothly.

Tailpiece

Original in brass with 4 brass string posts. Brass string loop.

Bridge/tensioner

New rosewood bridge with brass saddle.

Scale Length Bridge to nut

Scale of 332mm

G string height at bridge

5 mm

E string height at bridge

5mm

12th fret to bottom of G string (Action)

1.25mm

12th fret to bottom of E string (Action)

2mm

Width of fretboard at nut

27mm

Width of fretboard at widest point

40mm

Sleeve guard

Sleeve guards are available if required

Case

I have some re-conditioned bowl-back cases available for purchase, as well as gigbags.
