5. French flat-back mandolin (302)    £120
Larger photos are available on request.

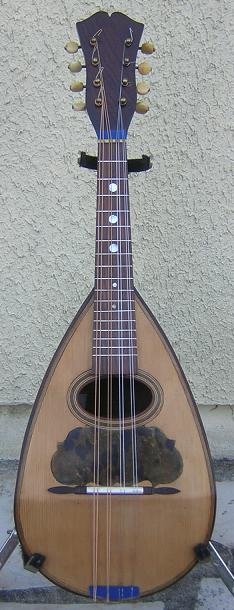

Old French flat-back

    This is an old, French flat-back mandolin, with wider than usual fingerboard. It is in good condition after restoration.

It has no makers name, but is very similar to flatback models in the Laberte-Humbert Catalogue of 1912. (See photo) It was repaired by Victor Autiero of Avignon in 1949.

   This instrument is now fully restored. The top is sound with NO repairs.  It has a single piece stained-maple back and sides. Repairs to damage in 2 places on the sides. The original ebony fingerboard is level and set on a shim. It retains its original re-levelled brass frets. The tuners and tail are originals. The bridge has been refitted, but is probably not original. It has been refinished on top with Tru-oil for protection. The remaining finish is mostly original, but has been touched up to remove scuffs, and around repairs It has been restrung with ultra-light GHS bronze wound classical strings, and is now playing well with a full, round sound, and fair volume. It has an easy action.

    Other than cleaning, I have repaired as follows… 1) repaired damage to the sides in 2 places; 2) replaced missing edging; 3) set the f/b on a shim and levelled the frets; 4) replaced sound hole edging; 5) refinished the top, and touched up elsewhere with a shellac-based finish; 6) replaced a missing tuner button; 7) refitted the bridge and new bone nut; and 7) renewed anti-vibration felting.

   This instrument is now sound and plays very well. The Mandolin will be ‘tuned down’ and very carefully packed for posting. The box may afterwards be converted into a serviceable case.

Mandolin Specifications (In Millimetres)

Overall Length of Mandolin

660mm

Width of  mandolin at widest point

240mm

Approx. Depth of mandolin

90mm at bridge.

Finish

Refinished top with Tru-oil. Touched up elsewhere with shellac based finish.

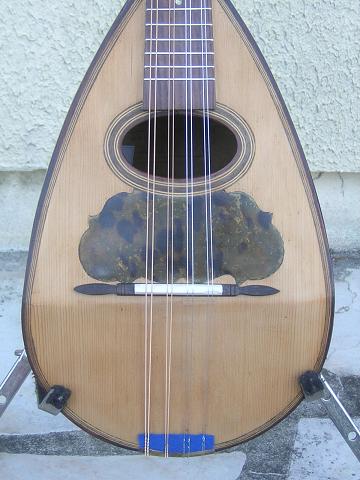

Belly wood

A close-grained, book-matched, spruce top. Edging now in good repair.

Scratch plate

Rosewood

Sound hole

Oval hole, approx. 75 x 40mm.

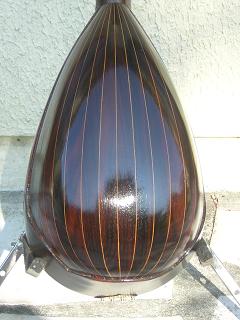

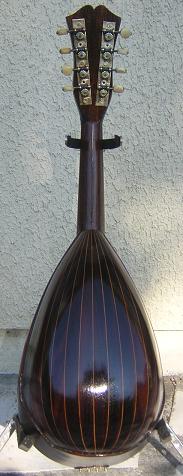

Back and sides

Single-piece, stained maple back, similar sides. A couple of repairs to sides.

Neck and Head

Single-piece neck and head in good condition.

Fingerboard

Original f/b in ebony with 18 original re-levelled frets.  New bone nut. MOP position markers at 5, 7 and 12.

Machine heads

Original steel and brass tuners with original buttons. One period replacement. All working.

Tailpiece

Original in steel, with 4 large string posts.

Bridge/tensioner

Bridge refitted, probably not original.

Scale Length Bridge to nut

Scale of 330mm

G string height at bridge

9mm

E string height at bridge

9mm

12th fret to bottom of G string (Action)

2mm

12th fret to bottom of E string (Action)

1.5mm

Width of fretboard at nut

30mm

Width of fretboard at widest point

43mm

Sleeve guard

Sleeve guards are available if required
