4. Old German flat-back mandriola (293)  @ £125
Larger photos are available on request.

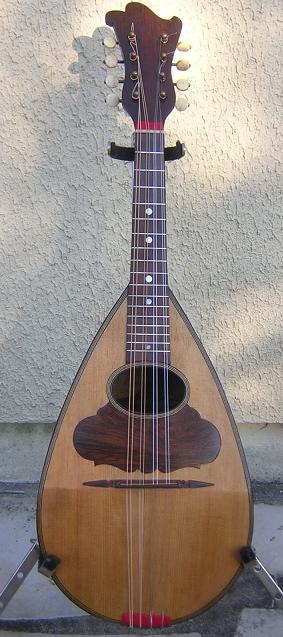

Old German dome-back mandriola

    This is an old, German domeback mandriola, which arrived in sad state. It is in fair condition after restoration. Tuned like a mandolin, this has a bigger fuller sound. There is no label.

   The top is now sound with 2 shrinkage repairs.  It has a domed back with several repairs.  It has the original rosewood fingerboard and re-levelled frets. The original tuners., but new bridge and tail-piece. The instrument has been completely refinished. It has been restrung with Pyramid silver wound mandriola strings, (£25 per set) and is now playing well with a bright, clear, ringing tone, and good volume. It has an easy action. The fingerboard and top have been treated with ‘Lem-Oil’ to inhibit the adherence of grease.

    Other than cleaning, I have repaired as follows… 1) levelled the original frets; 2) repaired 2 small shrinkage splits in the top; 3) repaired seam separations in the back; 4) fitted a removable plug in an old pick-up hole in the lower side; 5) refinished throughout with Tru-oil; 6) new tailpiece; and 7) fitted a new bridge and tensioner.



Mandriola Specifications (In Millimetres)

Overall Length of Mandriola

680mm

Width of  mandriola at widest point

270mm

Approx. Depth of mandriola

100mm at bridge.

Finish

Re-finished throughout with Tru-oil, a light, hard modern oil varnish that allows maximum vibration in the wood.

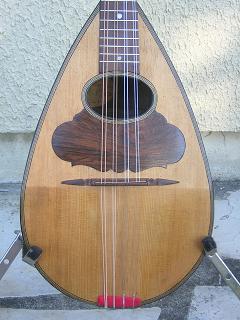

Belly wood

Fair quality, book-matched, spruce top with 2 small shrinkage repairs.  Micro-purfling and edging in good repair.

Scratch plate

Original rosewood scratch in fairly good condition.

Sound hole

Oval hole, approx. 70 x 40mm.

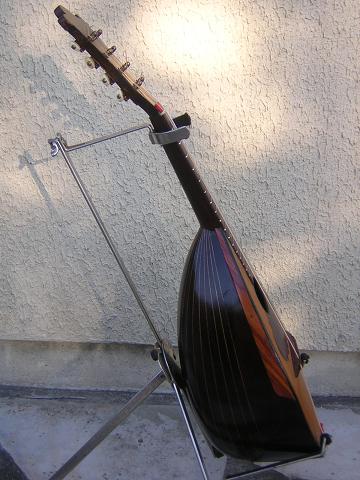

Sides

Stained maple sides. There is a small hole in the lower side where a pickup was evidently located. I have fitted a small removable plug, rather than fill it.

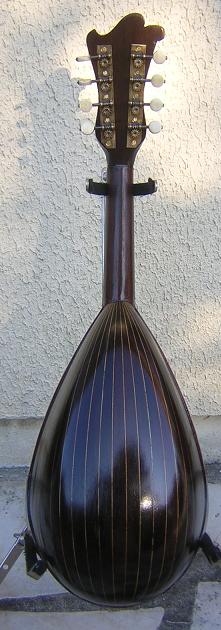

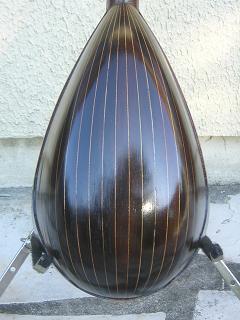

Back

Back which shows evidence of old repairs, may be mahogany.

Neck and Head

Single-piece, stained neck and head in fair condition.

Fingerboard

 Original in rosewood. Original re-levelled frets. Position markers at frets 5, 7 and 12. Original nut.

Machine heads

Original, steel and brass tuners.  All working…. NOTE: twelveth string tuner jumps, but works fairly well when wound the other way.

Tailpiece

New in steel with 8 string hooks and strap hook. A proper strap post has also been fitted.

Bridge/tensioner

New rosewood bridge fitted, with tensioner.

Scale Length Bridge to nut

Scale of 330mm

G string height at bridge

6.5mm

E string height at bridge

6mm

12th fret to bottom of G string (Action)

2mm

12th fret to bottom of E string (Action)

2mm

Width of fretboard at nut

34mm

Width of fretboard at widest point

47mm
