252   Old German bowl-back   @  £100

Larger photos are available on request.

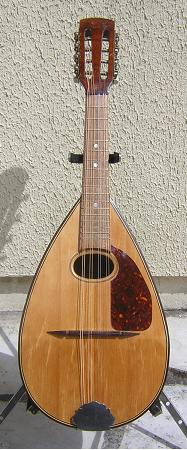

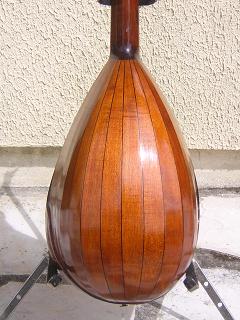

Solid German bowl-back

    This is an old, German bowl-back mandolin. It is in good condition after minimal restoration. There is no label, but this is normal for instruments made in the old E. Germany



   The original fingerboard, is flat and true with original brass frets. The top is in good condition with no repairs.  It has a 13-piece bowl with some seam repairs. The tuners, tail and bridge are originals,. The top has been refinished with Tru-oil, a modern, light, but hard, oil varnish, that allows maximum vibration in the wood. Elsewhere original varnish has been ‘touched up’. It has been restrung with ultra-light GHS bronze wound classical strings, and is now playing well with a light, bright well balanced sound. It has an easy action. The fingerboard and top have been treated with ‘Lem-Oil’ to inhibit the adherence of grease.

    Other than cleaning, I have repaired as follows… 1) refinished the top; 2) touched up the finish elsewhere; 3)levelled the original frets; and 4) refitted the bridge.





Mandolin Specifications (In Millimetres)

Overall Length of Mandolin

620mm

Width of  mandolin at widest point

205mm

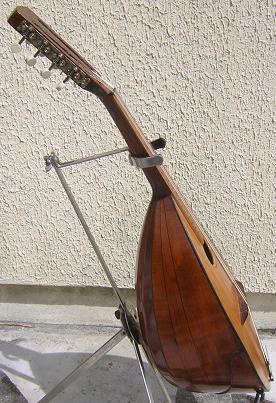

Approx. Depth of mandolin

160mm at bridge.

Finish

Top finished in Tru-oil. The remainder retains original finish, touched up on scratches.

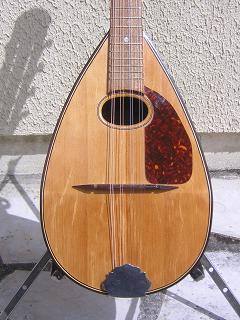

Belly wood

Fair quality, book-matched, spruce top, sound with NO repairs.

Scratch plate

New acetate.

Sound hole

Oval hole, approx. 55 x 35mm

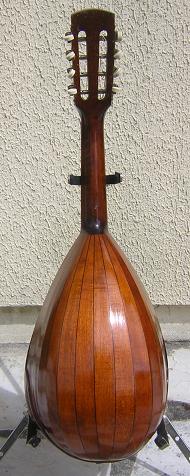

Back and sides

13-piece, stained maple bowl-back, with 2 seam repairs.  Ebony stringing.

Neck and Head

Stained maple 1-piece neck and head in good condition.

Fingerboard

 Original. 17 original re-levelled brass frets, showing no wear. MOP position markers at frets 5, 7 and 12. Original ebony nut.

Machine heads

Original steel and brass tuners with original buttons.  All working well.

Tailpiece

Original in steel with 8 string hooks and strap loop.  Built in sleeve guard.

Bridge/tensioner

Original rosewood bridge refitted.

Scale Length Bridge to nut

Scale of 331mm

G string height at bridge

10mm

E string height at bridge

9.5mm

12th fret to bottom of G string (Action)

1.75mm

12th fret to bottom of E string (Action)

1.5mm

Width of fretboard at nut

32mm

Width of fretboard at widest point

43mm

Sleeve guard

Built into tailpiece
