Instrument

Component

Mandolin

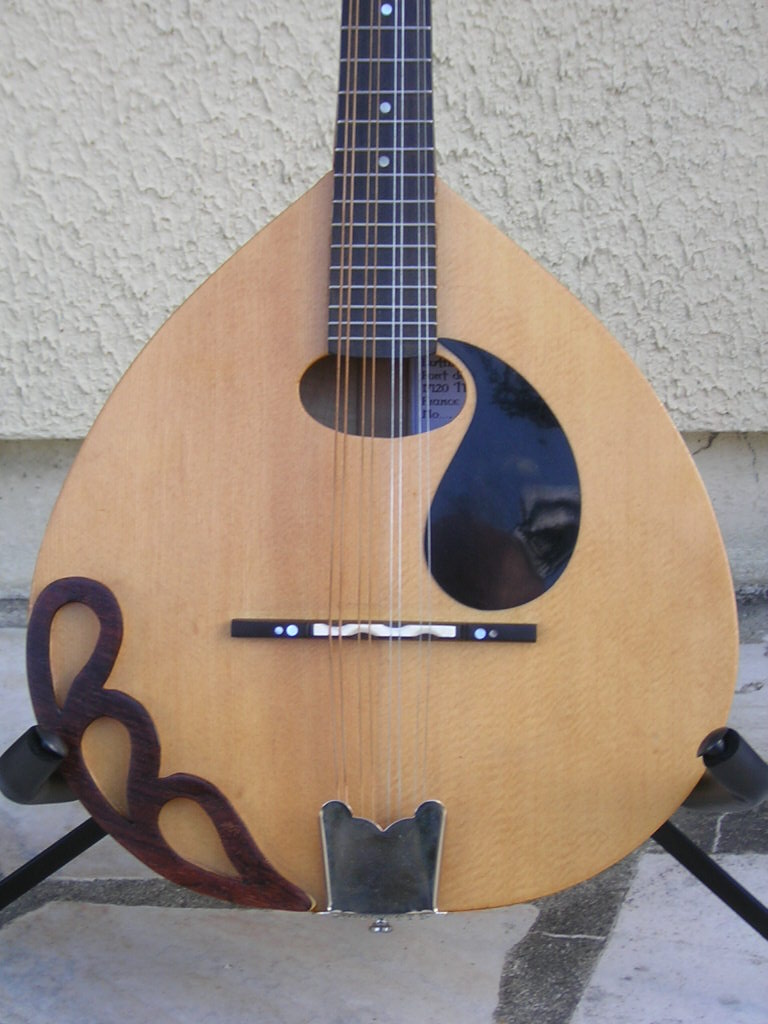

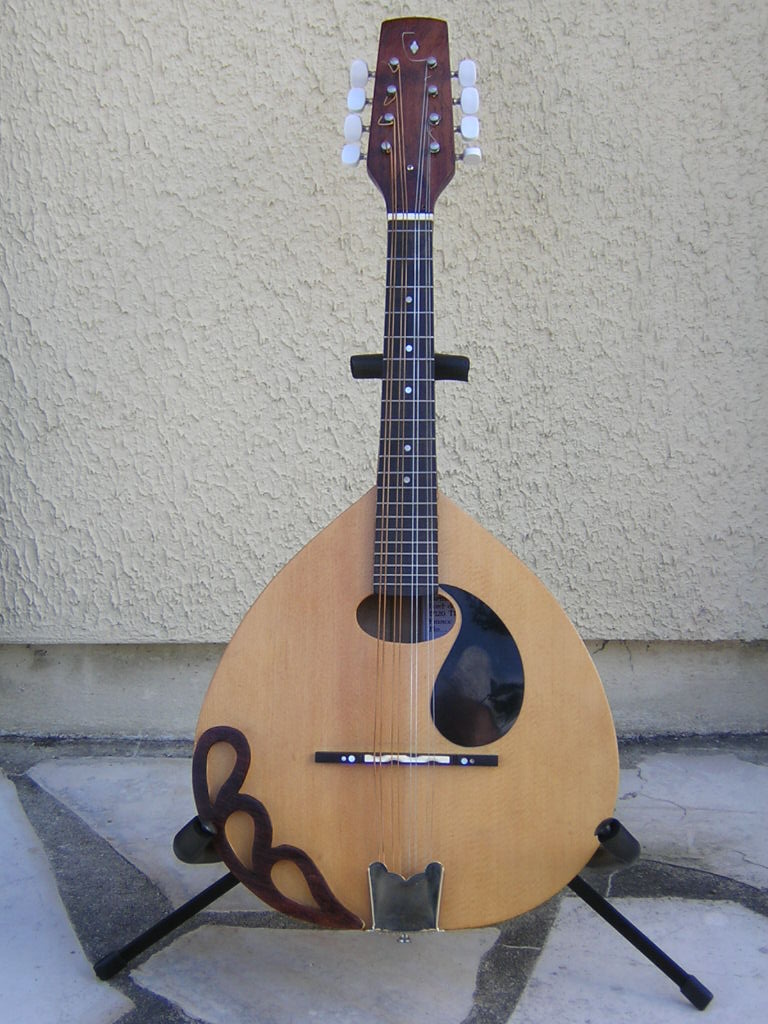

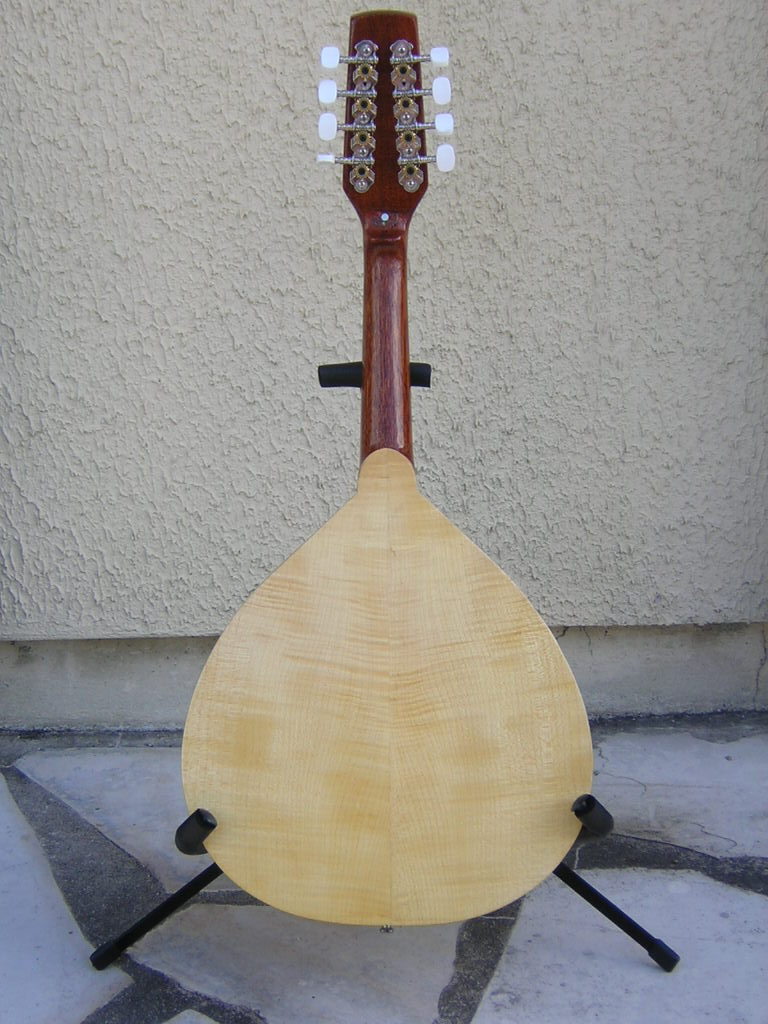

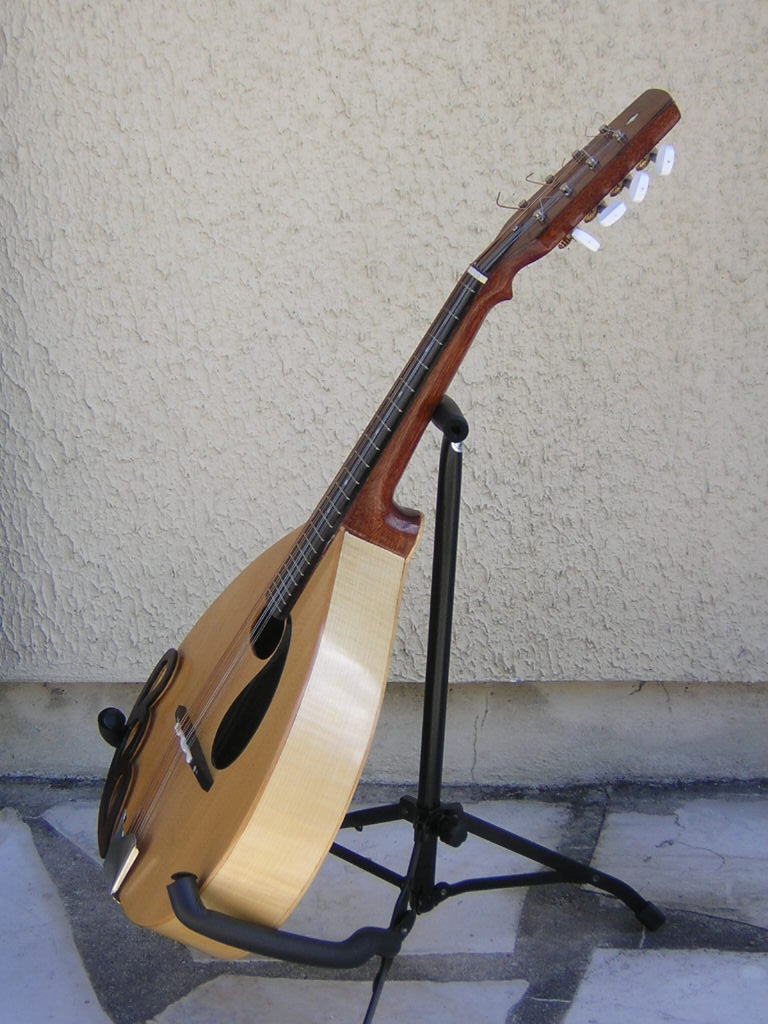

mandolin02.JPG (165352 bytes)mandolin04.JPG (159997 bytes)mandolin03.JPG (143613 bytes)mandolin05.JPG (158398 bytes)

click to enlarge

soundboard

Sitka spruce

back

Sycamore

ribs

Sycamore

binding mahogany
purfling none

neck

Mahogany

fingerboard

Ebony

head veneer

Rosewood

linings

willow/spruce

struts (belly)

spruce

struts (back)

mahogany

tail block

spruce

fretwire

extra light 0.8mm

truss rod

4mm

nut

resin

bridge

ebony

scale length

353mm

strings

 .009 .013 .024w .036w

action (12 fret on E/G)

1.5-2mm

cost

700 Euros
